Data Ingestion Architecture
Overview of the unified data ingestion system for files and external databases.
Integrated Data Adeloop
Ingest, process, and analyze data from any source. Adeloop unifies your stack into one cohesive operational layer.
Control Plane
Adeloop Core
The Data Ingestion system is the entry point for all data analysis within the platform. It provides a unified, secure, and user-friendly interface for importing local files and connecting to live external databases.
Architecture Overview
The system abstracts the complexity of different data sources behind a single, consistent interface. Whether uploading a static CSV or connecting to a live PostgreSQL database, the user experience remains seamless.
Core Components

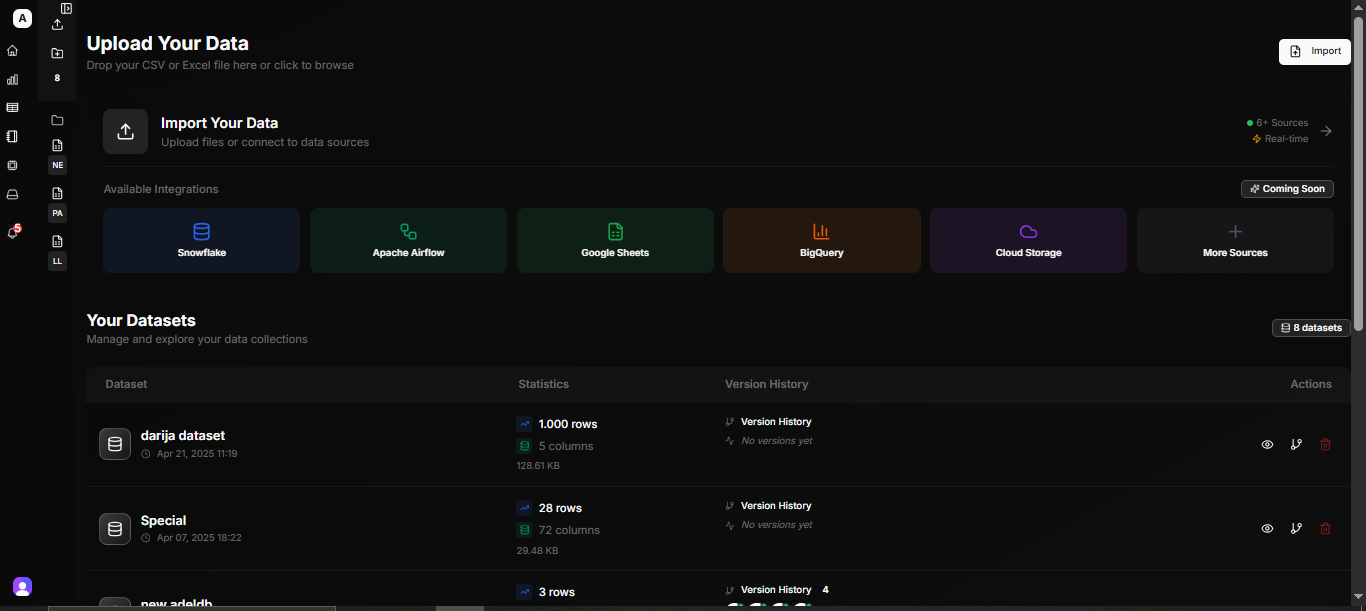

- Unified Import Interface: A single modal that handles multiple input methods. Users don't need to navigate to different pages for different data types.
- Schema Detection Engine: Automatically analyzes incoming data (both files and DB tables) to detect column types, format dates, and identify potential issues before import.
- Secure Credential Manager: Handles database connection strings with server-side encryption. Credentials are never exposed to the client-side/browser storage.
Supported Data Sources
1. File Uploads
Designed for static datasets and ad-hoc analysis.
| Format | Features | Best For |
|---|---|---|
| CSV | Fast parsing, auto-delimiter detection | Large, flat datasets |
| Excel (.xlsx) | Multi-sheet support, formula value extraction | Financial reports, business data |
| JSON | Nested structure flattening | API responses, logs |
Key Features:
- Drag & Drop: Intuitive upload zone.
- Preview: Instant look at the first 50 rows before committing.
- Version History: Track changes to datasets over time.
2. External Databases
Designed for live, dynamic data access. The platform acts as a secure client, fetching data on demand.
| Database | Features | Best For |
|---|---|---|
| PostgreSQL | SSL support, schema browsing | Production application data |
| MySQL | TCP connection, optimized fetching | Web application backends |
| MongoDB | Collection execution, JSON compatibility | Document stores, audit logs |
Security Architecture:
- Encryption: All passwords and connection strings are encrypted at rest using AES-256.
- No Persistence: We do not store the actual data from external DBs unless explicitly imported. We query it in real-time.
- Read-Only Safe: Connections are treated as read-only by default to prevent accidental data modification.
Ingestion Workflow
File Ingestion Flow
- Upload: User selects a file.
- Client-Side Parse: Small files are parsed locally for immediate feedback.
- Server Upload: Large files are streamed to the secure storage bucket.
- Metadata Extraction: The system calculates row counts, column types, and data quality metrics.
- Availability: The dataset becomes immediately available for SQL querying and Python analysis.
Database Connection Flow
- Connect: User enters credentials (Host, Port, User, Password).
- Test: The system attempts a localized "ping" to verify connectivity and permissions.
- Save: Valid credentials are securely stored.
- Browse: The user can see a list of available schemas and tables.
- Query: When a table is selected for analysis, dynamic SQL queries connect to the source to fetch the latest data.
User Experience Features
- Unified "Add Data" Modal: One click to access all ingestion methods.
- Smart Type Inference: Automatically distinctions between numbers, dates, and strings to prevent downstream analysis errors.
- Connection Testing: "Test Connection" button ensures credentials are valid before saving.
- Saved Connections: Reuse database credentials without re-entering them (securely stored).
